HMI connecting components
Products

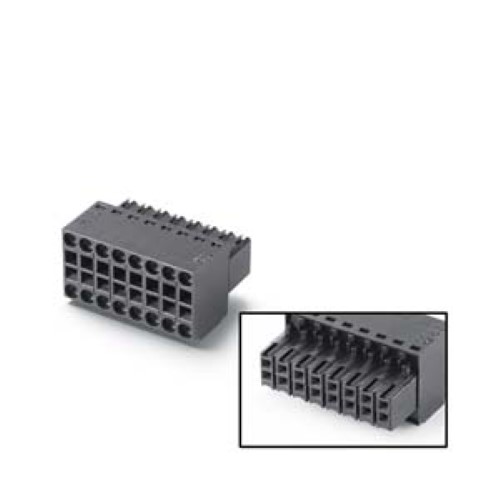

16-pin connector, female 16-pin connector, female 180°, max.: 1.5 mm2 Further information, Quantity and content: see technical data
connector, female, 2x2-pole, ET200SP, interface module, KP32F, PN-PN coupler, grid size 5.08 mm cage clamp technology

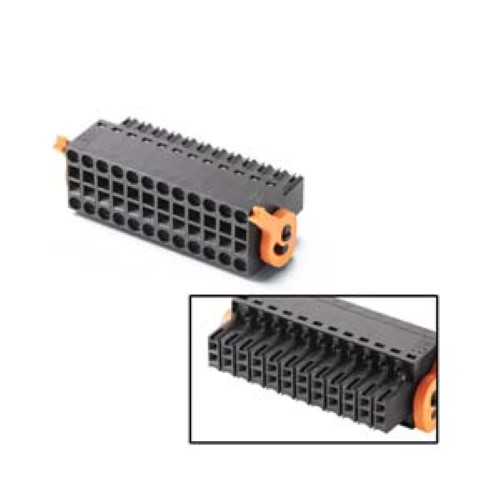

24-pin connector, female 24-pin connector, female 180°, max.: 1.5 mm2 Further information, Quantity and content: see technical data

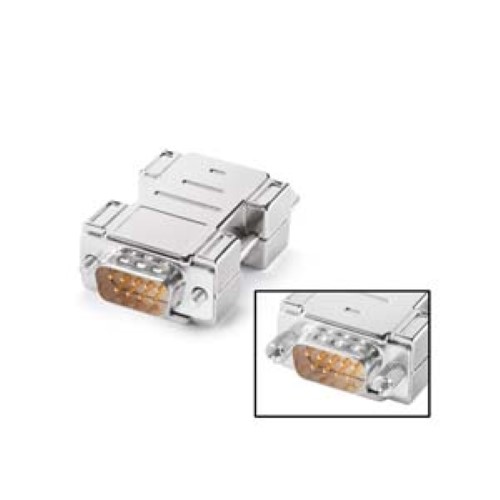

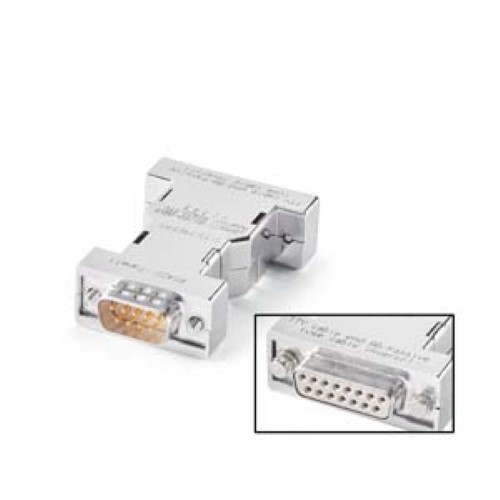

Converter RS422 to RS232 Converter RS422 to RS232, can be screwed together with RS422 interface, Cable outlet 180 degrees, for connection of third-party PLC

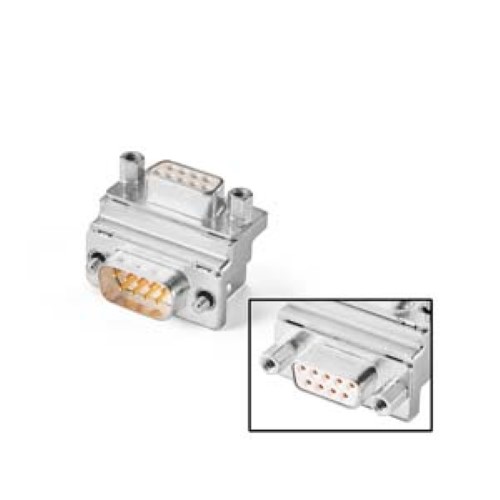

90 degree bracket adapter, 1:1 90 degree bracket adapter, 1:1 can be screwed together with RS485/422 interface or RS232 interface Further information, Quantity and content

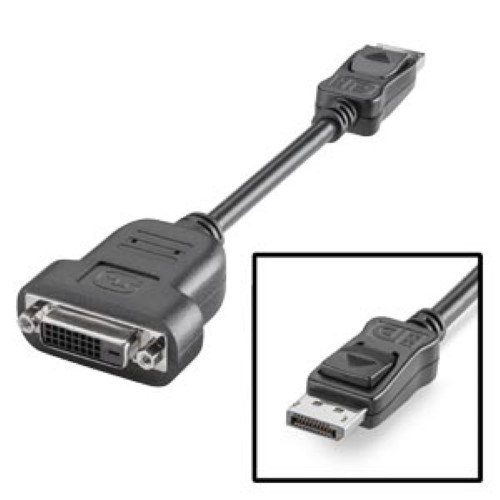

SIMATIC IPC accessories, DisplayPort to DVI-D adapter (1x DP-DVI-D adapter). More information, quantity and content: see technical specifications

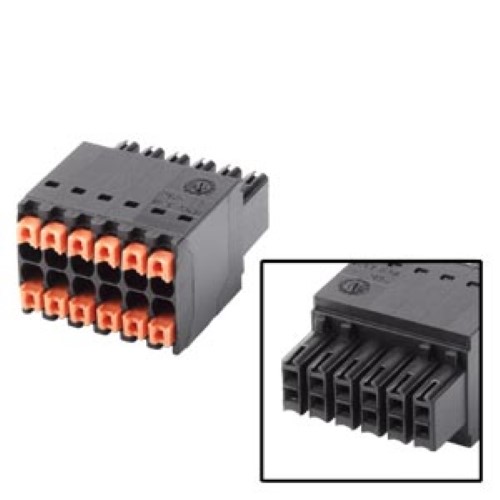

12-pin connector, female 12-pin connector, female 180°, max.: 1.5 mm2 Further information, Quantity and content: see technical data
Converter RS422 to TTY Converter RS422 to TTY, female (15-pin), can be screwed together with RS422 interface, Cable outlet 180 degrees, for connection of SIMATIC S5

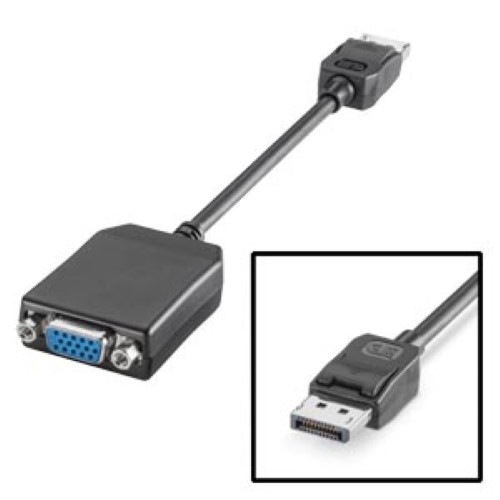

SIMATIC IPC accessories, DisplayPort to VGA adapter (1x DP-VGA adapter). More information, quantity and content: see technical specifications

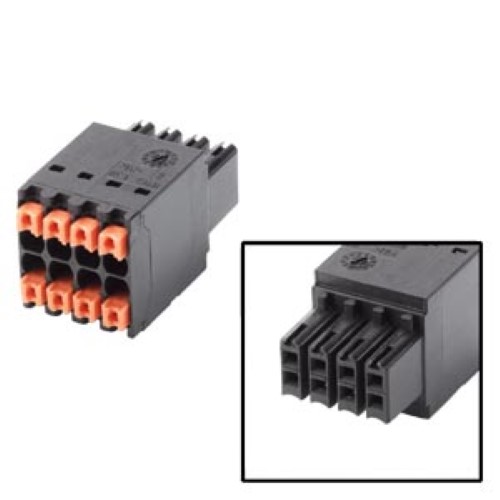

Connector, female, 8-pole, grid size 3.50 mm 180°, max.: 1.5 mm2. For further information, quantity and content: See technical data

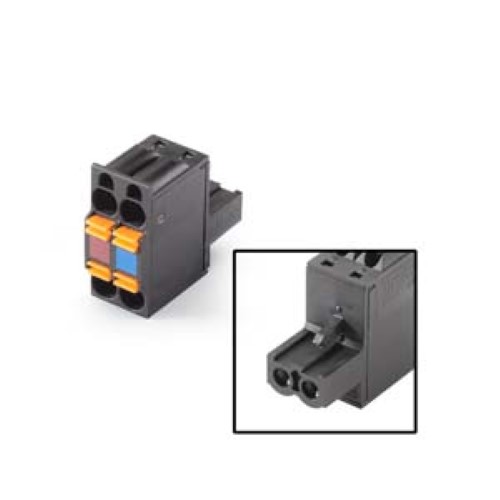

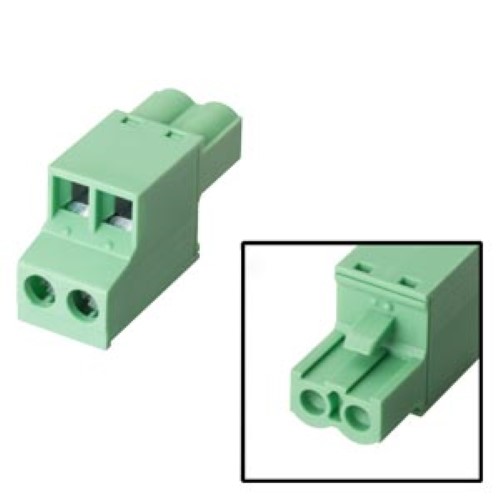

Female connector, 2-pin, type 1 2-pin connector, female Grid size 5.08 mm Further information, Quantity and content: see technical data Quantity: see technical data
