HMI connecting components
Products

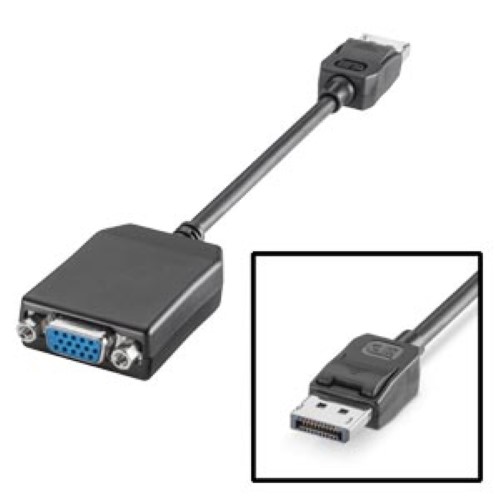

SIMATIC IPC accessories, DisplayPort to VGA adapter (1x DP-VGA adapter). More information, quantity and content: see technical specifications

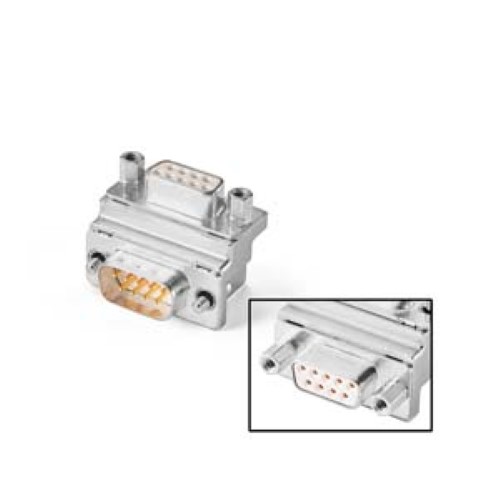

90 degree bracket adapter, 1:1 90 degree bracket adapter, 1:1 can be screwed together with RS485/422 interface or RS232 interface Further information, Quantity and content

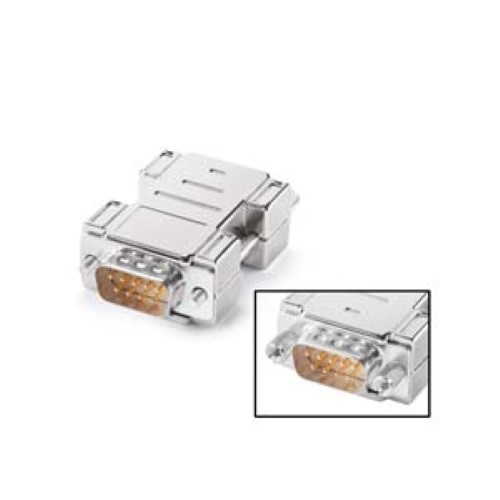

Converter RS422 to RS232 Converter RS422 to RS232, can be screwed together with RS422 interface, Cable outlet 180 degrees, for connection of third-party PLC

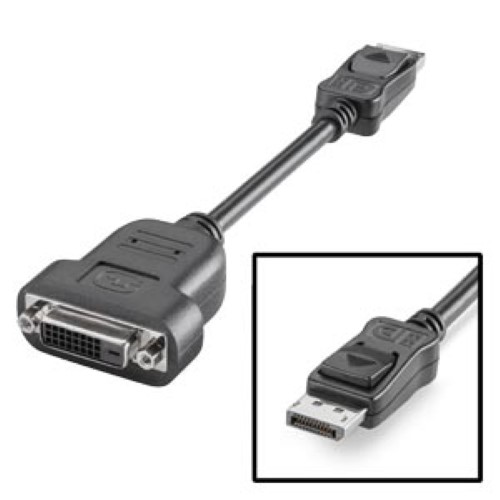

SIMATIC IPC accessories, DisplayPort to DVI-D adapter (1x DP-DVI-D adapter). More information, quantity and content: see technical specifications

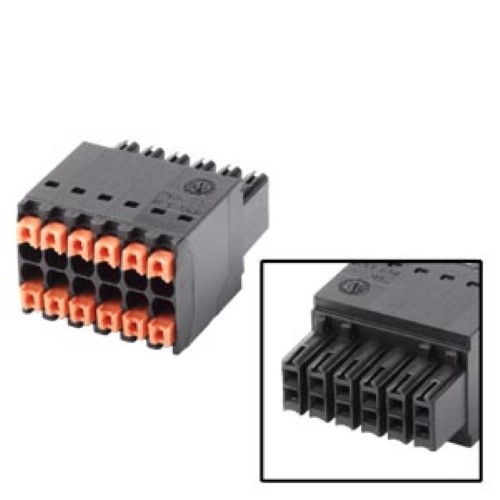

12-pin connector, female 12-pin connector, female 180°, max.: 1.5 mm2 Further information, Quantity and content: see technical data

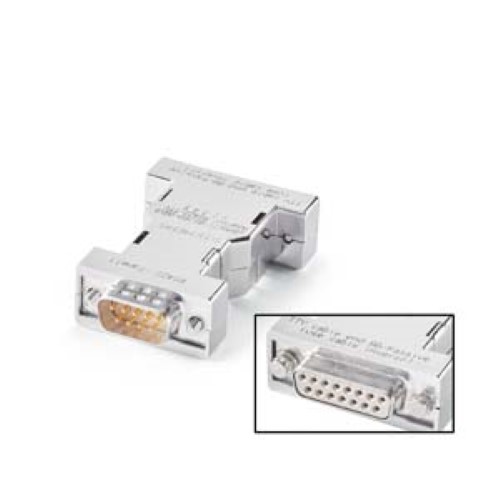

Converter RS422 to TTY Converter RS422 to TTY, female (15-pin), can be screwed together with RS422 interface, Cable outlet 180 degrees, for connection of SIMATIC S5
16-pin connector, female 16-pin connector, female 180°, max.: 1.5 mm2 Further information, Quantity and content: see technical data

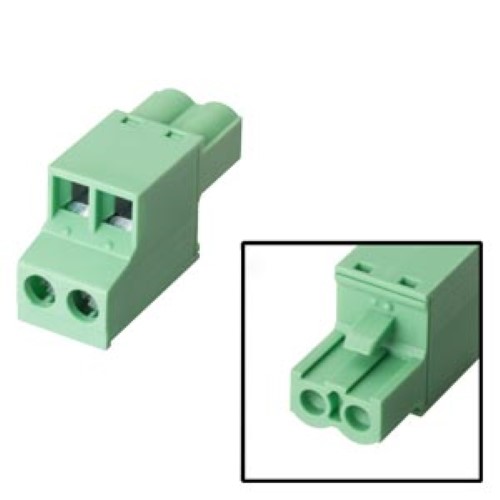

Female connector, 2-pin, type 1 2-pin connector, female Grid size 5.08 mm Further information, Quantity and content: see technical data Quantity: see technical data

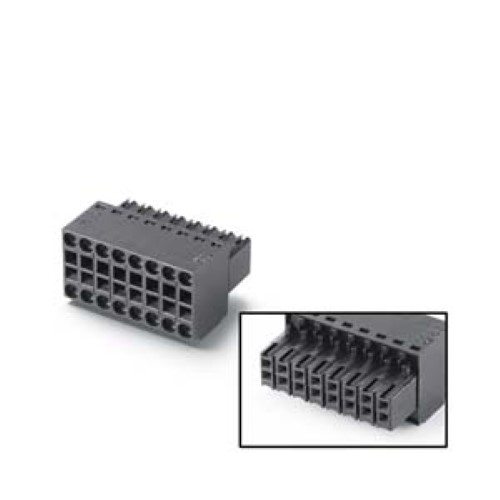

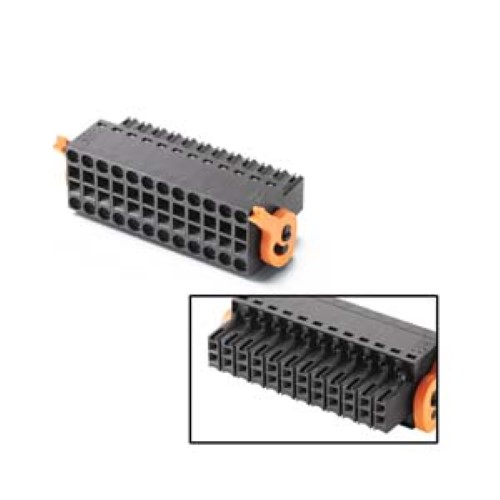

24-pin connector, female 24-pin connector, female 180°, max.: 1.5 mm2 Further information, Quantity and content: see technical data

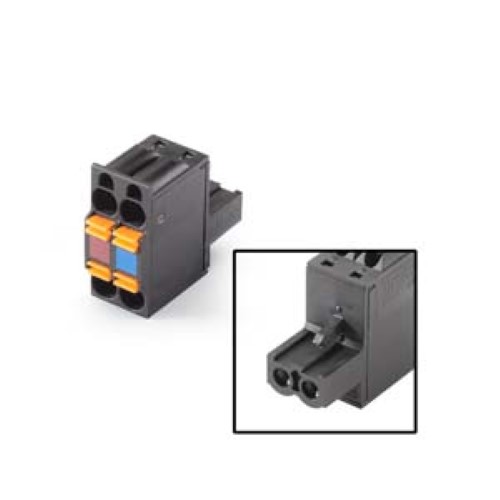

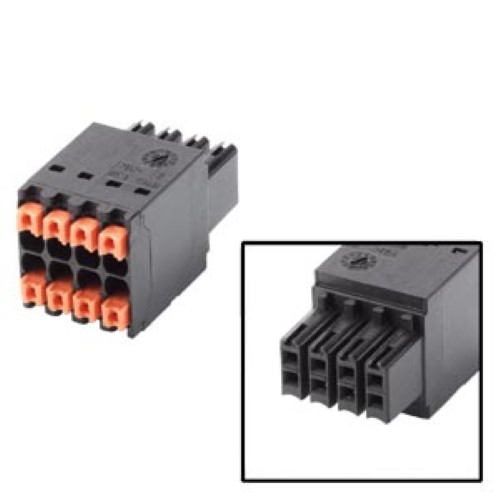

connector, female, 2x2-pole, ET200SP, interface module, KP32F, PN-PN coupler, grid size 5.08 mm cage clamp technology
Connector, female, 8-pole, grid size 3.50 mm 180°, max.: 1.5 mm2. For further information, quantity and content: See technical data
